| Minimum Software Version | 8.14 |
| Solution(s) | Cases International ✓ Cases US ✓ Institutions ✓ |
You can customise the forms that display worksheet fields, and choose which form appears in each part of the application.
Forms display worksheet fields. You can configure a form to choose which fields appear when users view, add, or edit worksheet information, and you can map each form to the locations where it is used. You manage both from the Edit worksheet dialog.
Why customise forms

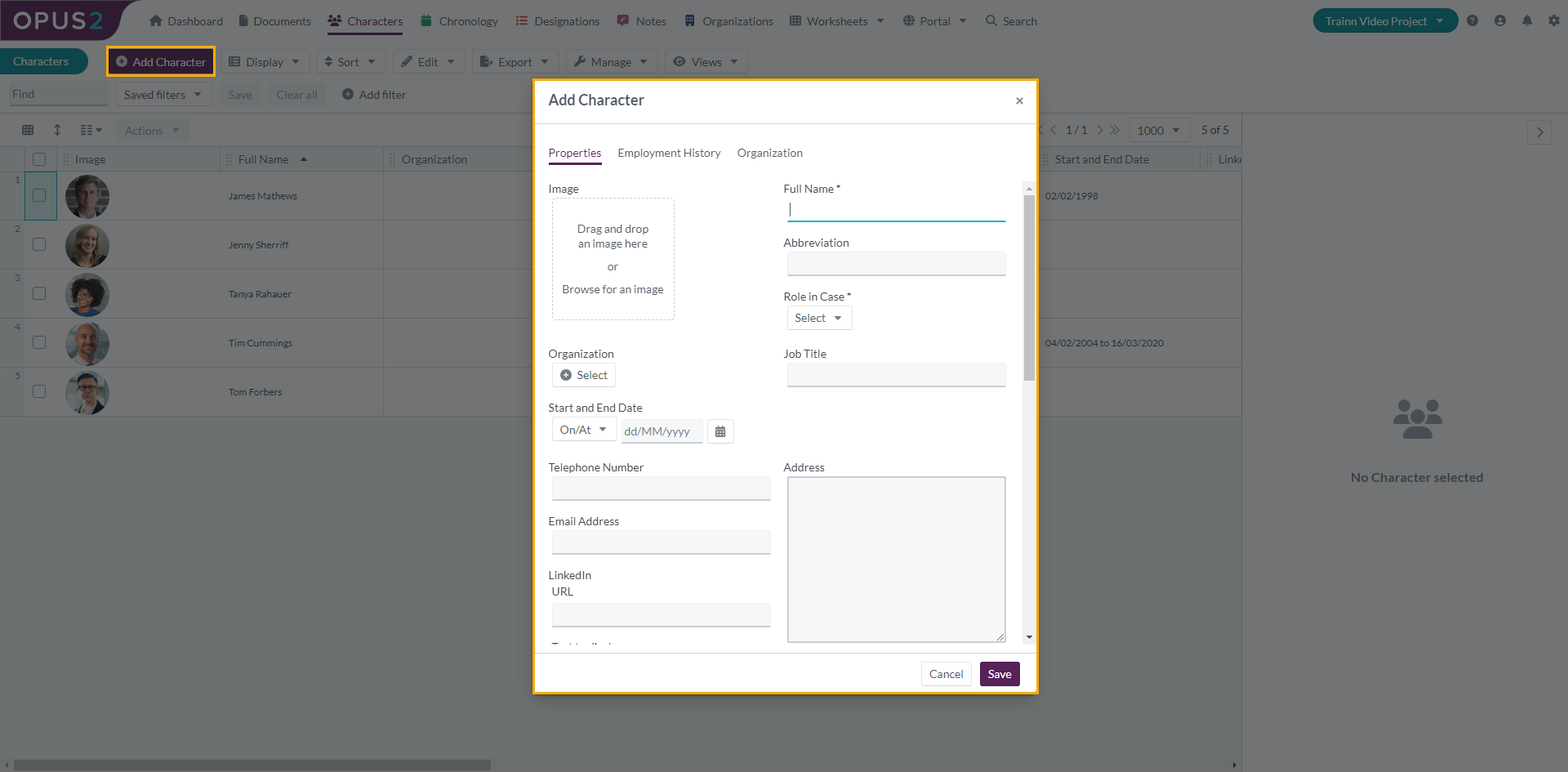

The most familiar form in a worksheet is the Add dialog, which you use to add new records. By customising forms, you control which fields appear in each place a worksheet record is created, viewed, or edited. For example, you can show a shorter set of fields when users add a record than when they view or edit it.
Accessing form settings
- In the worksheet, select Edit.
- Select Edit worksheet.
The Edit worksheet dialog opens. You configure form locations on the Display tab and create and edit forms on the Forms tab.
Mapping forms to locations
If a worksheet has more than one form, use the Display tab in the Edit worksheet dialog to choose which form appears in each location. The locations are listed along the top of the form display options.
[Image: Form display options on the Display tab]
| Location | Description |
|---|---|

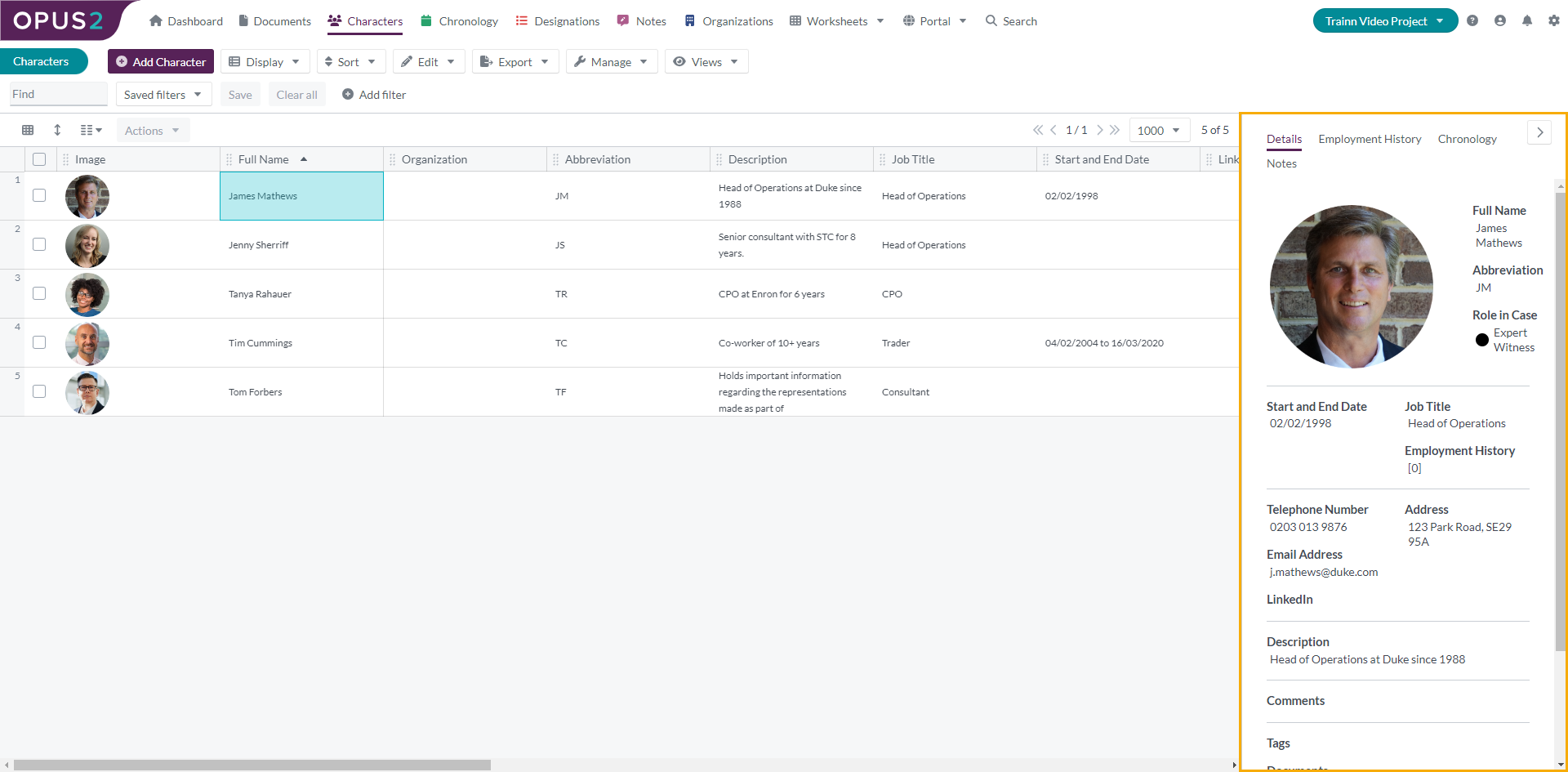

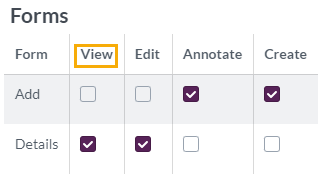

| View | The form used when you select a record in a worksheet and the Details tab of the right panel opens.![]() |

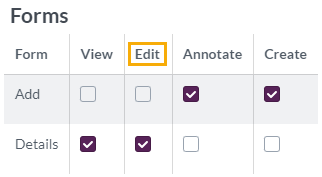

| Edit | The form used when you select into the form in the right panel after selecting a record. Having separate View and Edit locations lets you show a different selection of fields in the view and edit versions of the form.![]() |

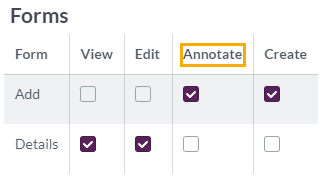

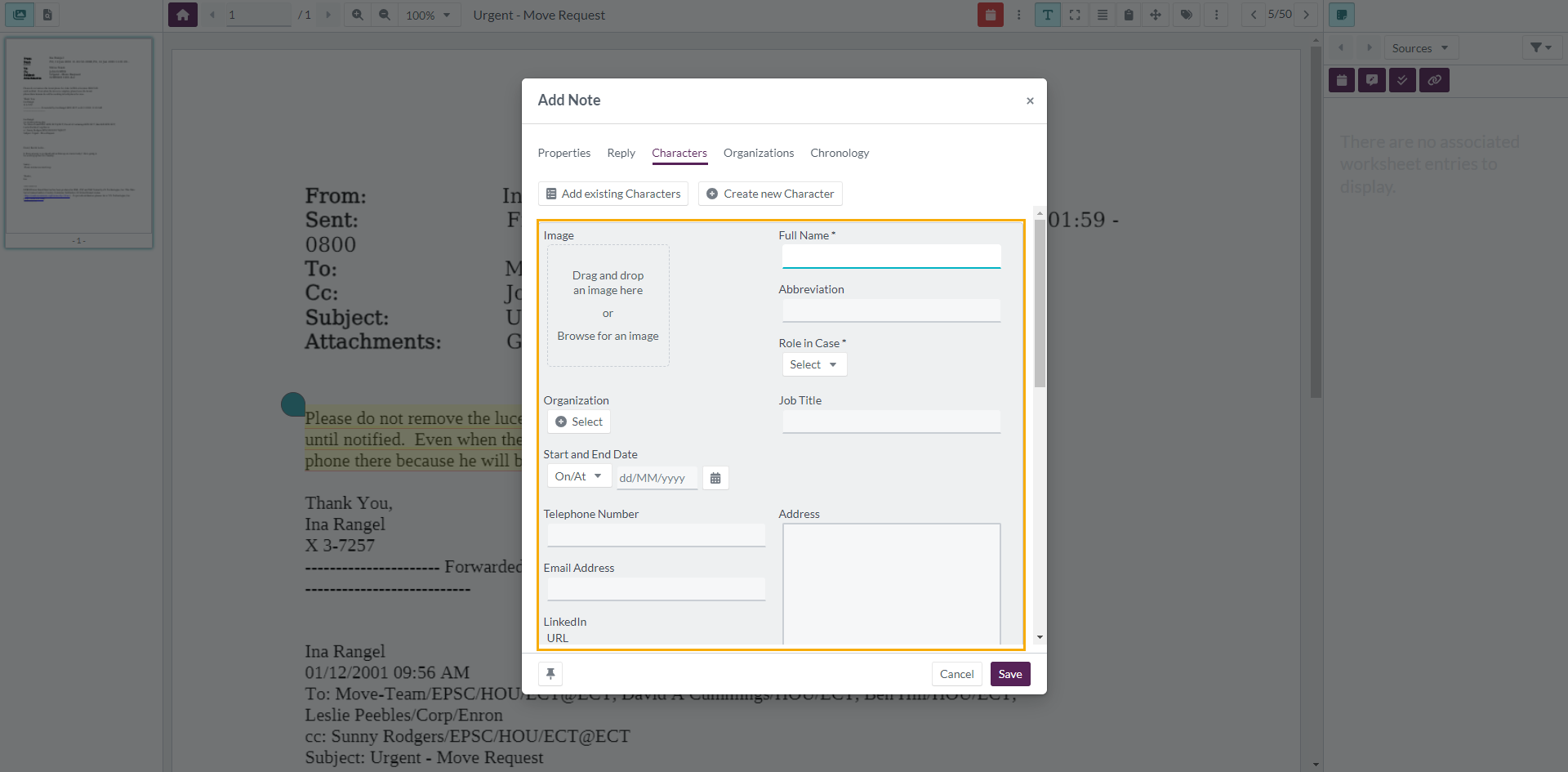

| Annotate | The form used when you add a new record from the annotation dialog and link an annotation to a worksheet record. For the Notes worksheet, this is the form used in the Add note dialog.![]() |

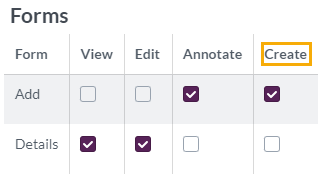

| Create | The form used when you add a new record from the Add option in the worksheet.![]() |
| Import | The form used for the bulk import of designations. It is used for this purpose only. For details, see Importing designations.![]() |

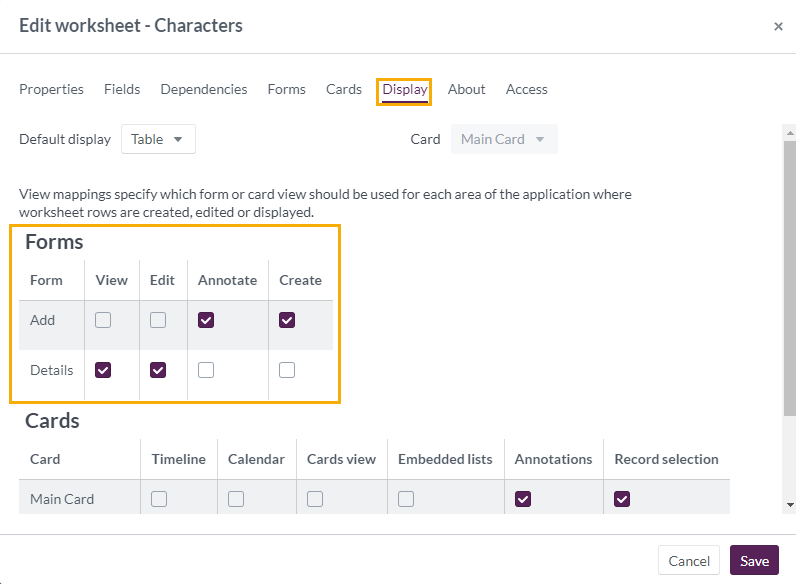

Example: In the mapping shown below, the Add form is used for Create, the Details form is used for View and Edit, and the Add Annotation form is used for Annotate. [Image: Forms mapping table]
Creating and editing forms
You create and edit forms on the Forms tab of the Edit worksheet dialog.
- In the Edit worksheet dialog, select the Forms tab. The worksheet's forms are listed as tabs along the top, for example, Add, Details, and Add Annotation.

- Select the tab of the form you want to edit, or select + Add to create a new form. If the worksheet has no forms, select the button to create one.
- In Name, enter or edit the name of the form. The name is required.

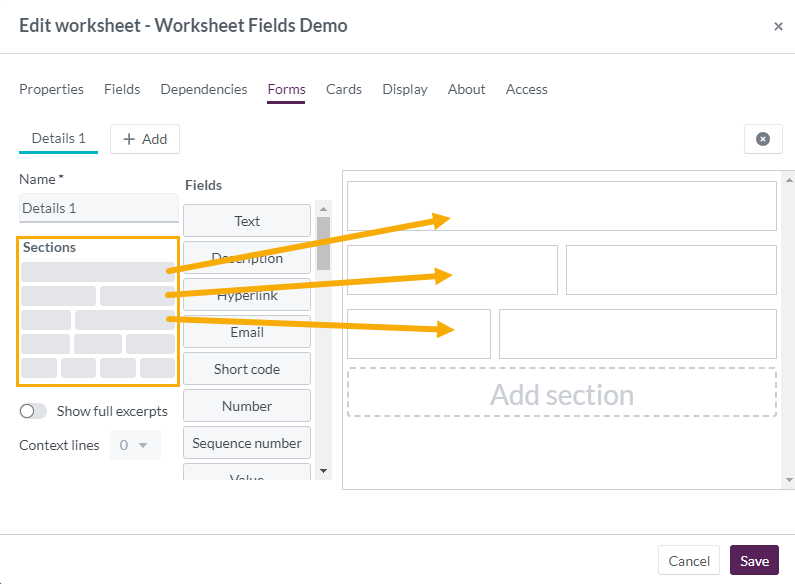

- Use the section layouts on the left, under Sections, to build the structure of your form. Drag the section layout you want into the form builder on the right. You can add as many fields to a section as you need, and you can change the layout of fields in different parts of the form by using different section layouts.

- Add the fields you want to display. The Fields list shows every field available in your worksheet. A form only shows the fields you add to it, wherever it is used.

- Choose how the label appears for each field in a section: top label, side label, or no label.
- If the worksheet has a highlighted text field, optionally turn on Show full excerpts to display the entire highlighted passage instead of the first few lines. Use Context lines to include lines on either side of the passage.
- Select Save.
Deleting a form
- On the Forms tab, select the tab of the form you want to delete.
- Select the x icon in the right-hand corner, above the form builder.
