| Minimum Software Version | 8.18.10 |
| Solution(s) | Cases International ✓ Cases US ✓ Institutions ⨉ Counsel ✓ |
Explains how to add and configure the Image component in the Portal Builder, including uploading images, selecting from the image library, and adding a caption.

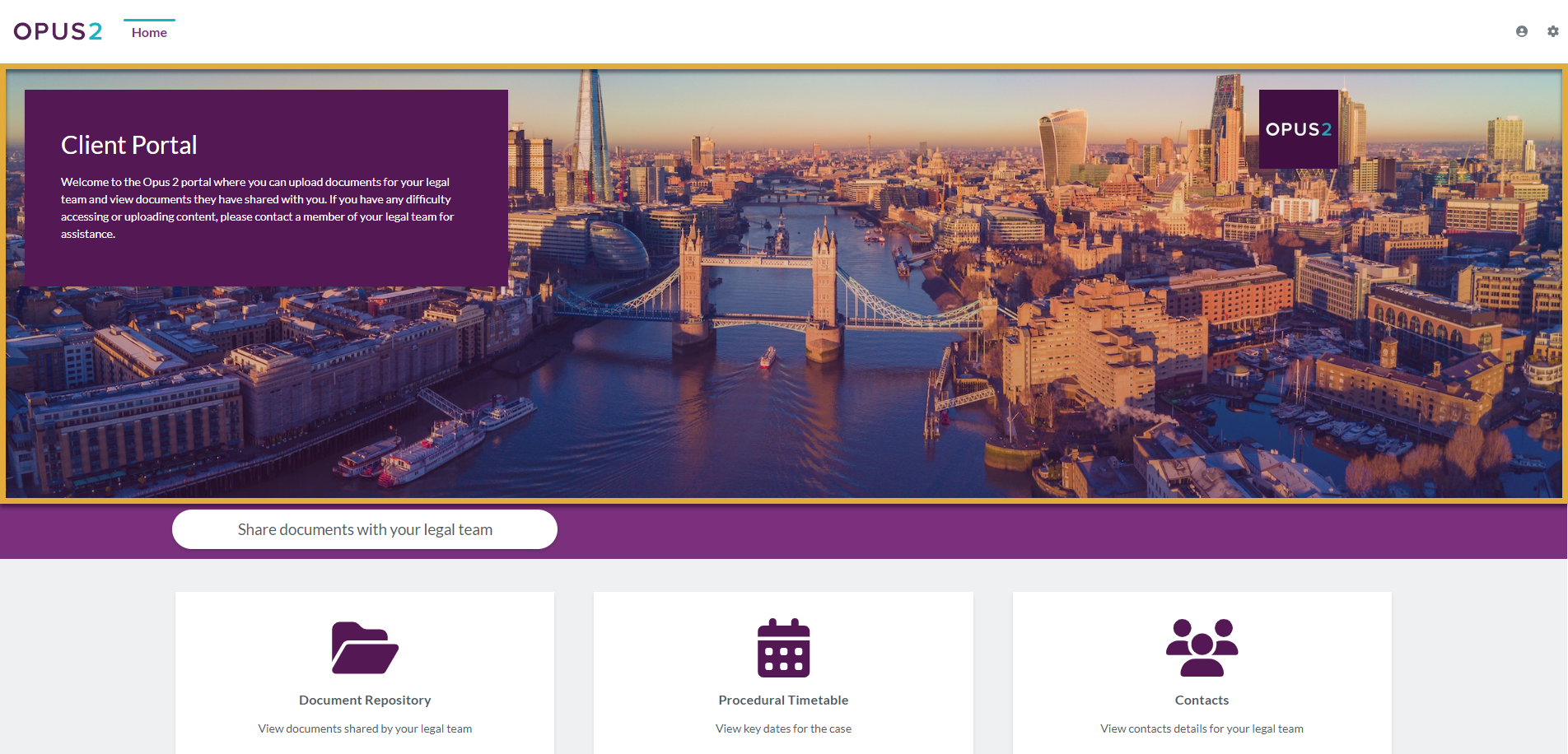

The Image component displays visual content within the portal, such as law firm logos or other branding imagery. Images must be uploaded and named in the Portal Builder before they can be selected for use on a page.
Uploading images to the Portal Builder
Before adding an image to a page, upload and name it in the Portal Builder.
- Open the Portal Builder.
- Upload the desired image and name.
- Confirm the image appears in the image library.
Example: Upload a law firm logo named Firm_Logo_Main for reuse across multiple pages.
Adding and configuring an Image component
- Add the Image component to the desired location on the page layout.

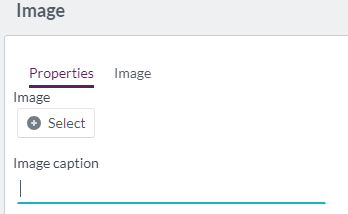

- Open the Properties tab.
- Configure the following options:
| Option | Description |
|---|---|
| Image | Select an image that has been uploaded to the Portal Builder. |
| Image caption | Enter a caption or heading for the image (maximum 100 characters). |
Select Select to open the Select Image dialog.

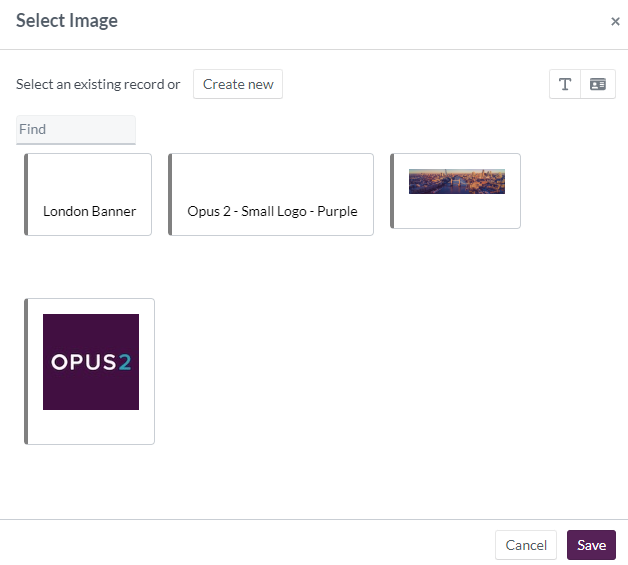

Selecting or uploading an image
From the Select Image dialog, you can:
- Browse images already uploaded to the Portal Builder.
- Use the Find option to search for images by name.
- Switch between views:
- Text view – Displays named images only.
- Gallery view – Displays all images, including unnamed ones.

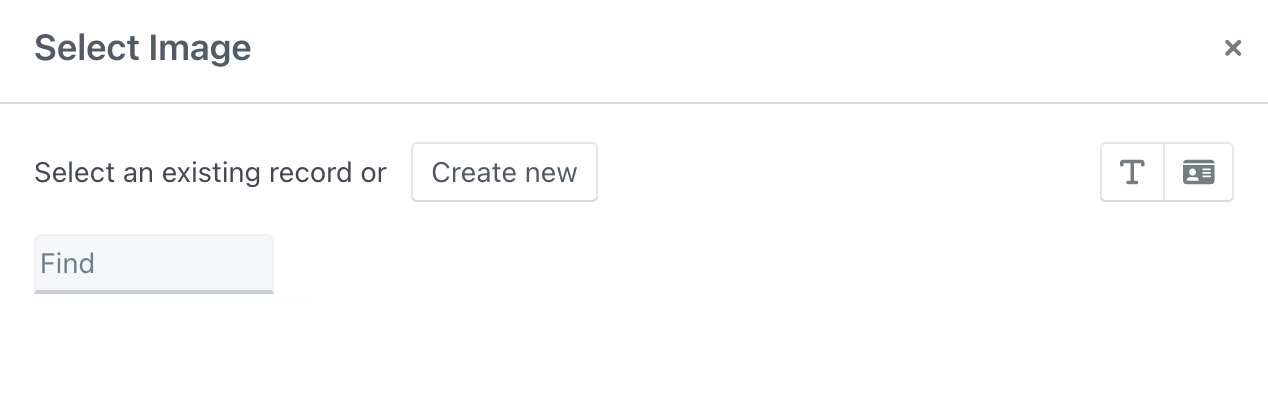

To upload a new image, select Create new, then drag and drop a file or browse your local files. You will be prompted to enter a name for the image during upload.
Example: Search for logo using the Find option to quickly locate branding images.

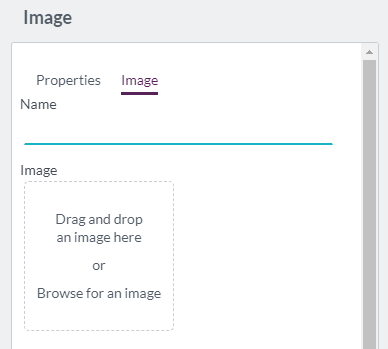

Using the Image tab
The Image tab provides an alternative way to select an image, but only if no image has already been selected in the Properties tab.
| Option | Description |
|---|---|
| Select image | Opens the standard Select Image dialog. |
| Create image | Allows naming and selecting an image file, but does not correctly upload the image to the Portal Builder. |
Important: Always upload images via the Portal Builder or using the Create new option in the Select Image dialog to ensure they are available correctly across the portal.
