| Minimum Software Version | 8.14.3 |
| Solution(s) | Cases International ✓ Cases US ✓ Institutions ⨉ Counsel ✓ |
This article explains how to import designations into a case, either in bulk via a spreadsheet or individually by pasting designation ranges into a single transcript. Both methods support creating new designations and updating existing ones.
When creating new designations or adding more context to existing ones, you can import data via a spreadsheet rather than entering each designation manually. During collaborative designation review, this also allows you to add responses to designations across multiple transcripts in a single operation.
For targeted updates to a single transcript, designation ranges can be pasted directly into the transcript view without needing a spreadsheet.
At a minimum, your spreadsheet must include the Opus ID and Designation Range columns. Including a Designation Type column is best practice, though this value can be edited manually after import.
Page, line, and word ranges can be structured either as separate columns (start page, start line, start word; end page, end line, end word) or as a single column with values separated by colons. For example, to designate page 12, line 1, word 2 through page 12, line 5, word 5, enter 12:1:2-12:5:5. The word value is optional but useful for partial-line designations.
Importing designations from a spreadsheet
Accepted file formats: .xls, .xlsx, .csv.
- Select Designations from the top of the screen.
- Select Manage > Import items. The Designations import dialogue opens.
- Drag or browse to your spreadsheet in the dialogue. The dialogue expands to display the contents of the spreadsheet.
- Select the checkbox alongside any row you do not wish to import to exclude it.

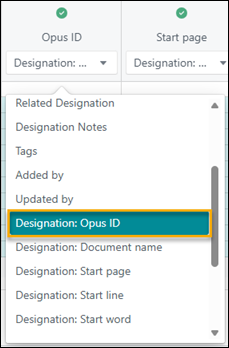

- Ensure the Opus ID column is mapped to Designation: Opus ID from the dropdown list. The Opus ID is used to match each incoming designation to the correct transcript in the case. Each transcript has a unique Opus ID assigned at the time of upload — this must match the Opus ID on the corresponding transcript.
Columns with a green tick at the top are matched between the current worksheet and the imported spreadsheet. If your spreadsheet does not include a header row, change First row content to Data. Map the Opus ID and page/line fields to the corresponding fields prefixed with Designations.
- Select your chosen Import behaviour from the dropdown list:
- Create and update — create new designations and update existing ones
- Create — create new designations only
- Update — update existing designations only

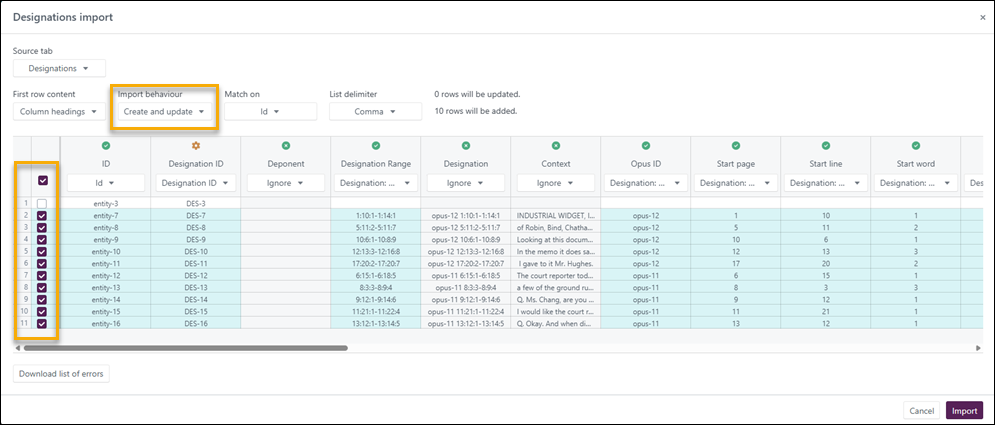

- The table shows a preview of the data to be imported. Only columns with a tick at the top are included. Field status is indicated by background colour:
- Blue — the field will be added
- Orange — the field will be partially added, as only part of the field has matched
- Red — the field will not be added, as the formats do not match
- Select Import to complete the process.
Importing designations into a single transcript
Use this method to add or update designation ranges for an individual transcript by pasting ranges directly into the transcript view.
- Open the transcript from the transcript worksheet or the Documents page.
- Click the preview on the right side of the page to open the transcript viewer.

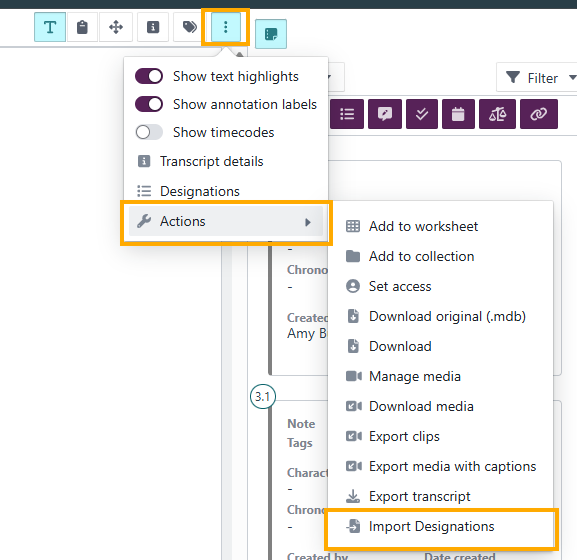

- Select the kebab menu (three dots) in the upper right corner.
- Go to Actions > Import designations.
- Copy the designation ranges from your source and paste them into the dialog box.

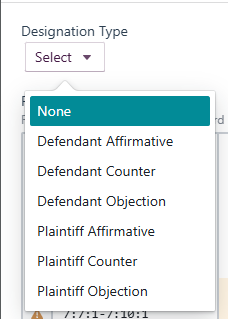

- Select the Designation Type at the top of the dialog box — this applies a single designation type to all pasted ranges.

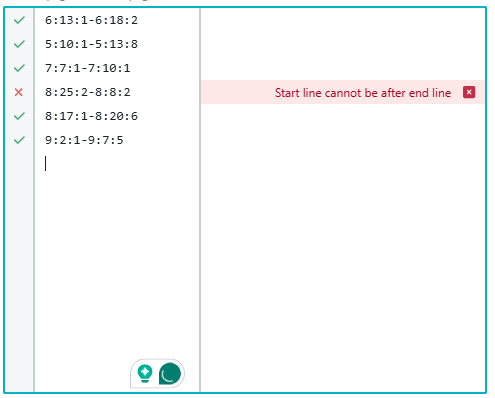

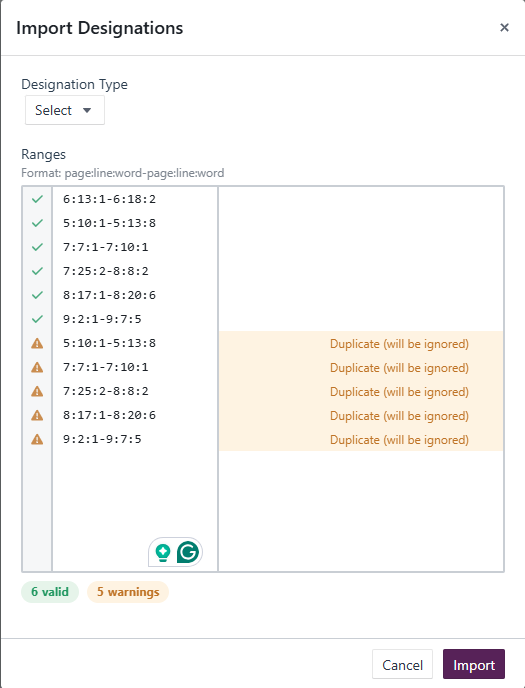

Review any warnings before importing. Errors or duplicate ranges are flagged with a warning message:- Designations with warnings will still import.
- Designations marked as invalid will not import until corrected.
- Ranges can be edited directly in the dialog box before importing.
- To remove a flagged range before importing, select the red X next to the error message.
- Select Import to complete the process.
